Rubber Strip Slicing and Cutting Machine

Name: Rubber Strip Slicing and Cutting Machine
Brand: Mixer
Price: 1 USD

Best Rubber Strip Slicing and Cutting Machine wholesale

Model NO. : XQ-620

Structure : Vertical

Color : Customized

Optional : Customized

Transport Package : Wooden Case

Specification : XQ-600

Trademark : Geekung

Origin : China

HS Code : 8477800000

Production Capacity : 500sets/Year

Place of Origin : China

Brand Name : Mixer

Certification : CE

MOQ : 1set

Packaging Details : wooden case package

Delivery Time : 20-30days

Payment Terms : T/T

Supply Ability : 30sets per months

Contact Now

Description:

Our "Rubber Strip Cutting Machine" is optimized in structure.With glass plates positioning in front makes the operation more secure. Feeding platform is made of stainless steel.

2.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.
3.PLC+HMI control. Rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.
Easy operation, operator just inputs the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.
4.Our "Rubber Strip Cutting Machine" combines advanced automatic mechanical and electric integration system,it overcome the problem for the normal "strip cutting machine " whose transmission parts could be wore after long time use.
Technical Specification:

Model	XQ-450	XQ-620	XQ-820	XQ-1000
Max. feeding rubber width(mm)	450	620	820	1000
Max. cutting rubber thickness(mm)	20	20	20	20
Max. cut stroke (strip width:mm)	50-70	50-70	50-70	50-70
Cut efficiency	86 times/min	86 times/min	86 times/min	86 times/min
Cut precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	3	3
Dimension(LxWxH:mm)	1050x700x1100	1150x850x1100	1400x1100x1200	1450x1240x1230
Weight(Kg)	500	750	840	970

Rubber Strip Slicing and Cutting Machine

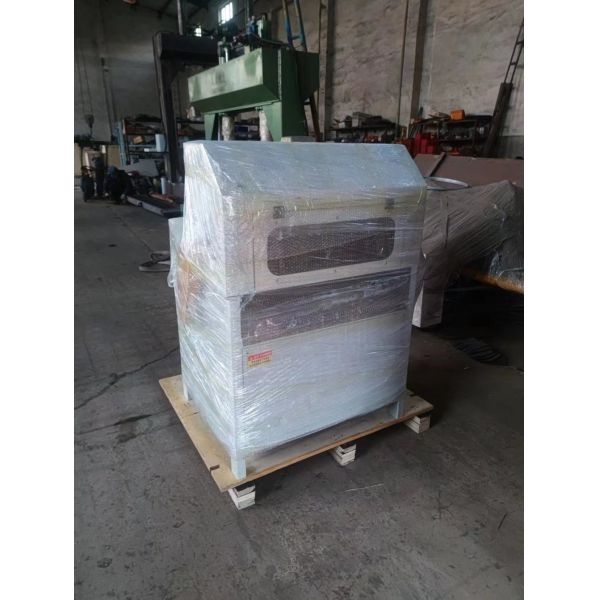

Rubber Strip Slicing and Cutting Machine Images
