415V Vacuum Automatic Rubber Cutting Machine with Horizontal and Vertical Trimming

Name: 415V Vacuum Automatic Rubber Cutting Machine with Horizontal and Vertical Trimming
Brand: Mixer
Price: 1 USD

Best 415V Vacuum Automatic Rubber Cutting Machine with Horizontal and Vertical Trimming wholesale

Place of Origin : China

Brand Name : Mixer

Type : Rubber Cutting Machine, Vertical type and horizontal type

Condition : New

Voltage : 220V,380V, 415V ETC

Dimension(L*W*H) : 1020x600x1000mm

Warranty : 1 Year

After-sales Service Provided : Field installation, commissioning and training, Engineers available to service machinery overseas

Power : 0.37kw

Weight : 210kg

Certification : CE

Packaging Details : wooden case package

Port : Shanghai

Supply Ability : 30sets per months

Price : $1,000.00 - $9,999.00/sets

MOQ : 1set

Delivery Time : 20-30days

Payment Terms : T/T

Contact Now

Product Description

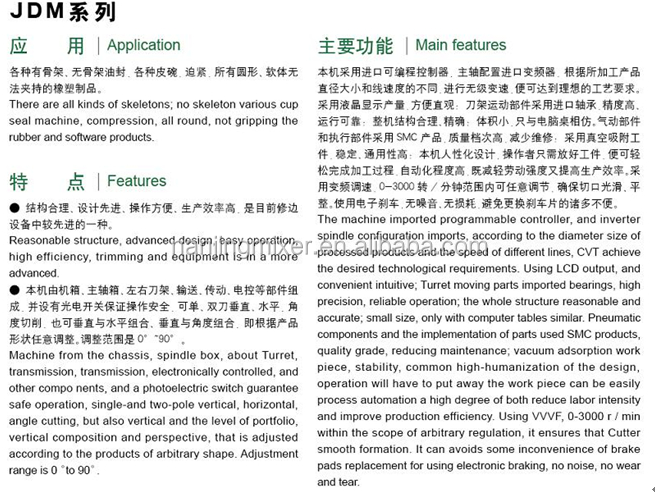

Application:

Trimming for Kinds of rubber skeletons, oil seal, packing leather, kinds of washer, round rubber parts.

415V Vacuum Automatic Rubber Cutting Machine with Horizontal and Vertical Trimming

Vacuum≤-0.035Mpa circular run out of main spindle≤0.01mmplane run out≤0.02mmSpeed of spindle:0-3000r/mincut degree:packing leather :0°~90°; oil seal:-10°~100°

cut range :10mm-200mm (adjustable)

Blade specification(ThickxWidexLength):3x3x60mmProduction capacity≥20 pcs/minMotor:0.37 kwVoltage: 220vWeight: 280kgDimension:850mm×850mm×1800mm

Technical Specification:

Structure	Vertical	Horizontal
Vacuum Degree	≤-0.035Mpa	≤-0.035Mpa
Spindle Precision	Radial run-out≤0.01mm; End face run-out≤0.02mm	Radial run-out≤0.01mm; End face run-out≤0.02mm
Shaft Speed	0-3000r/min	0-3000r/min
Cut Degree	Oil seal:20°~70°; Seal cup:0°~90°	Oil seal:20°~70°; Seal cup:0°~90°
Cut Range	φ5mm- φ200mm (adjustable)	φ5mm- φ200mm (adjustable)
Blade Size (ThickxWxLength)	3x3x60mm	3x3x60mm
Production Capacity	≥20 pcs/min	≥20 pcs/min
Motor	0.37KW	0.37KW
Voltage	220V	220V
Weight	210 kg	220 kg
Dimension(LxWxH:mm)	1020x600x1000	850x850x1800
